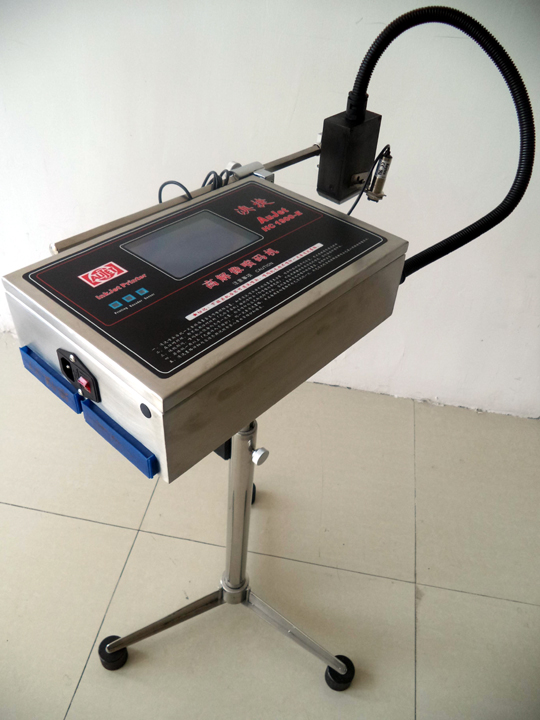

HC -1900 large Character High Resolution Ink-jet Printer

• This model is connected to the personal computer through USB interface, which guarantees quick and stable data transmission.
• The supporting software for this model, Kadex, is based on Windows operating system. Easy to use with stable performance and powerful editting function.
• The user can use the software Kadex,to make and transfer complicated symbols freely and printing it in BMP format.
• Can be connected with database to print barcode or UC Unrecognizable Code, also can be connected with outer equipment..
• The edited massage could be adjusted within 90 degree.
• The user can use the software Kadex, to adjust the printing position precisely to meet the requirements of prodution line.
• Simple and easy operation,there is a special video to demonstrate the operation and? teaching makes learning easy .
• Humanization design, the lights indicate the printing status.
• This model could be one head, two heads ( two nozzles), three heads (three nozzles), four heads (four nozzles). To achieve the spray height up to 35mm, 52mm, 70mm accordingly.


HC-1900 Character High Resolution Ink-jet Printer


1. Operating System: Windows98/ WindowsMe/ WindowsXP
2. Editting software: Special computer typesetting software Kadex . Powerful function with video teaching.
3. Software function: Can easily edit symbols,texts,numbers and barcode,the special function is what you preview is ,what is printed exactly .
4. Display:  all printing parameters are display on screen,clear information!
5. Printing Resolution DPI£º 200  DPI
6. Status display: Red light ( Sensor is working); Yelllow light (Encoder is working). Green light (Printing is working); White light ( Computer connection is working)
7. Printing fonts£ºHigh-definition printing any font,can also printing dot matrix font.         ( imitation dot matrix font)
8. Printing symbols: It can print various trademarks, logos, Chinese or foreign languages fonts, numbers, characters and special signs.
9. Lines of printing:  can edit the quantity of lines with in the valid height ( 18mm).
10. Printing UPC£ºITF/CODE39/JAN/EAN128/QR
11. Height of Character£ºCan choose the character height within print height range 2mm¡«18mm
12. Height of Nozzle Head: 18mm
13. Spraying Distance: The distance between the spray head and printing objects should be 5-10mm
14. Printing Direction: The spray head can be adjusted 0-180¡ã vertical downward or vertical updward, from left to right horizontally

15. Automatic Printing: Date, time, lot No, Shift No, Sequence No etc.
16. Message Memory£º Limitless memory space for messages
17. Text Length£ºMax. 250 characters.
18. Sequence No: 1-9 variable numbers
19. Printing Speed: Maximum 35 meters /minute .
20. Colors of Ink Cartridges£ºBlack, Red, Blue, White
21. Printing material: Metal, plastic, wood, aluminum film, carton or building material surface ect.
22. Applicable products£ºDisplay screen of mobile phone, drink lids, food package bags, medicine package, steel-plastic door & window, aluminum alloy, battery, plastic tube, steel plate, PCB, chip, woven bag, egg, brake, housing for mobile phone, carton etc.
23. Ink Cartridge£ºSolvent based environmentally fast dry ink cartridge or oil based ink cartridge. No need gas source or diluent.

24. Main Interface£ºUSB, encoder,sensor
25. Printer Dimension£º34.7x22.4x 11.5cm
26. Packing Dimension: 66x43x 31cm
27. Power£ºAC110- 240V
28. Power Consumption£ºAverage lower than 100W
29. Gross Weight: 12 KGS
30. Operation Environment£º1¡æ-37¡æ£»Humidity 30% -70%
31. Optional spare parts: Optical fibre sensor, synchronizer, conveyor.

¡¡

High quality, new standard, high resolution inkject printer in production line
The appearance of AuJet A180-S ink-jet printer sets a brandnew milestone in the ink-jet printer industry. This model adopts sophiscated hardware and advanced control technology. It¡¯s a very powerful printer for industry users. This printer enables its user easily print any needed content in the production line. In addition to the high-solution print result, the stable performance quality also leads to the lower operating cost, which exceeds customer¡¯s expectation and keep customers satisfied. And besides these benefits, there are more ¡­

Extra high-definition printing result
AuJet high-resolution ink-jet printer has 128pcs independent spray heads, which is more than any other dot matrix printer available in the market. The resolution is 300DPI ( Equal to 300 dots per square inch). The printed picture or texts are very clear and consistent. The extra high DPI makes the printing results very close to prining book and newspaper.

Cleaner printing
What you need to do is to just install the ink cartridge in the printer. There is no need to mix with any other dilution. Therefore it will fundamentally avoid the ink leakage problem. And the printing is clean and pollution free.

NO need to use external gas source
Most dot matrix printers require external gas source and dilution. While this model requires neither, thus saving the cost of gas.

No need to use dilution
This ink jet printer doesn¡¯t need dilution, it can therefore save the cost of consumables and dilutions.The ratio between ink and dilution is about 1:3 to 1:8. Therefore, you can save up to RMB 10,000 to 20,000 per year when using our printer.

Noise-Free
Because the printer is working silently without external gas source, it¡¯s noise free. Generally speaking, ordinary printers produce about 55 db, and it will reach over 100 db with external gas source. Our printer can reduce the environment pollution and possible hearing damage to operators.

No irritating odor
Printers which require organic solvents will produce irritating odor and pollute the environment because a huge amount of solvents will be volatile during the ink recycling process. This model doesn¡¯t use dilution, producing no irriating odor and having minimum influence on the environment.

No Pollution
This model user environmentally friendly and non-toxic ink catridge and cause no pollution to the printed objects. It¡¯s the best printer to be used in pharmaceuticals, food and beverage manufacturers.

Printing speed isn¡¯t influenced when adding lines.
The maximum speed is 35m/minute for the model . While for most inkjet printers, the nominal printing speed refers to the 1-line printing only, when printing 4 lines, the speed is only a quarter of the nornimal speed.

High-definition printing result, which can also print dot matrix.
Can also print imitation dot matrix with printing results similar to dot matrix printing

Can print characters big or small, One printer can do jobs of Two printers.
The character height for ordinary small-character printer is about 2mm¡ª12mm. While for this model, the maximum character height is 18mm
